DTH-Hammers

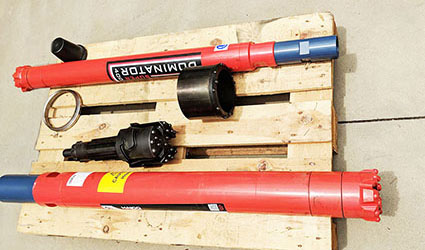

DTH hammers are hard rock drilling tools used on PAT rigs in conjunction with high pressure compressed air supply.


Download PDF

Category:

Product Description

DTH hammers are hard rock drilling tools used on PAT rigs  in conjunction with high pressure air supply.  PAT stock and supply Halco brand - made in the UK  with some 60 years experience with DTH tooling design & manufacture.

Each hammer size will operate with  range of drill bit diameters.

3" DTH hammer  - 90,95,100 & 105mm diameter     Download/view spec

4" DTH Hammer - 115,127, 140 & 150mm diameter  Download/view spec

5" DTH hammer - 146,150 & 165mm diameter   Download/view spec

6" DTH hammer - 150, 200 & 245mm diameter  Download/view spec

PAT manufacture stripping clamps,  bit spanners and starter tubes to support all DTH hammer sizes. Download
